Low Temperature Sensor, MJZT
-

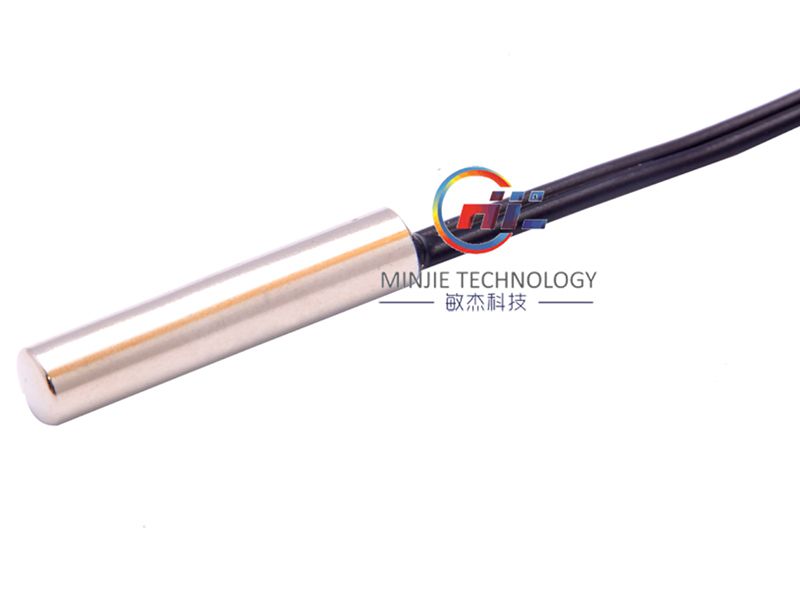

MJZT-A Low Temperature Sensor -

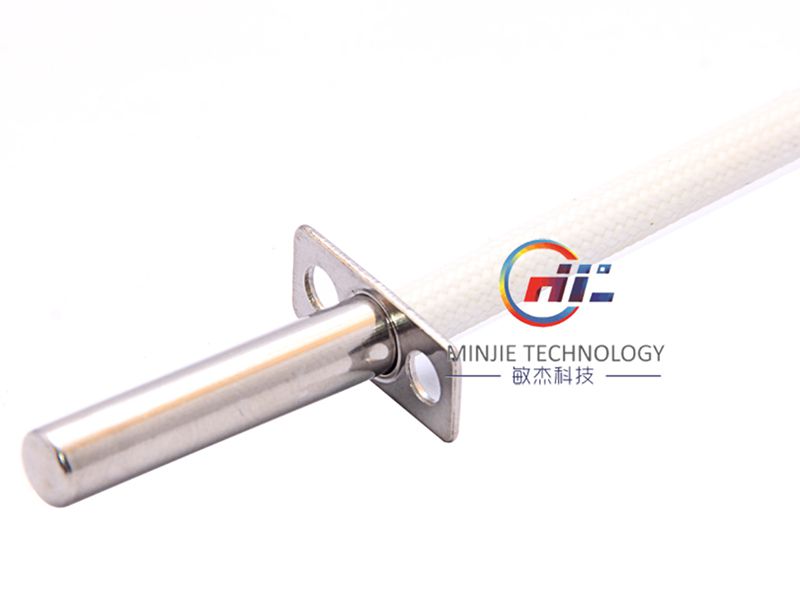

MJZT-B Low Temperature Sensor -

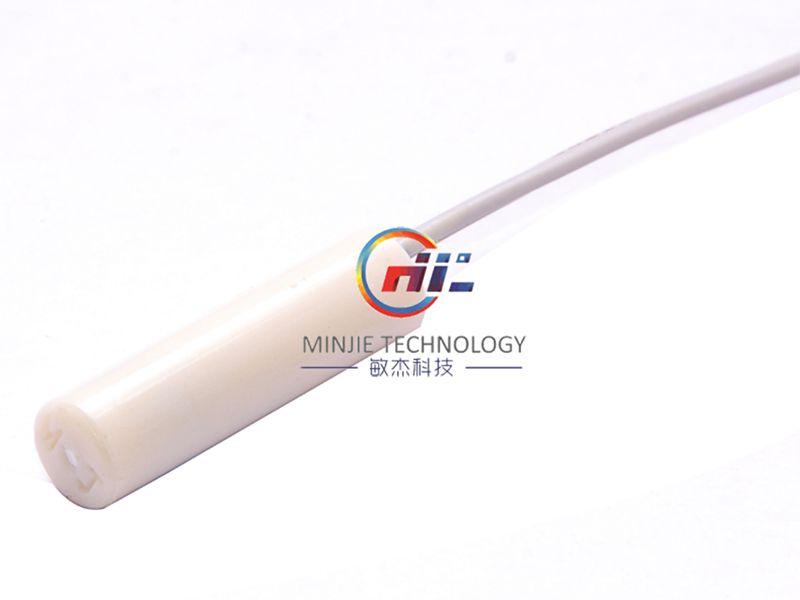

MJZT-C Low Temperature Sensor -

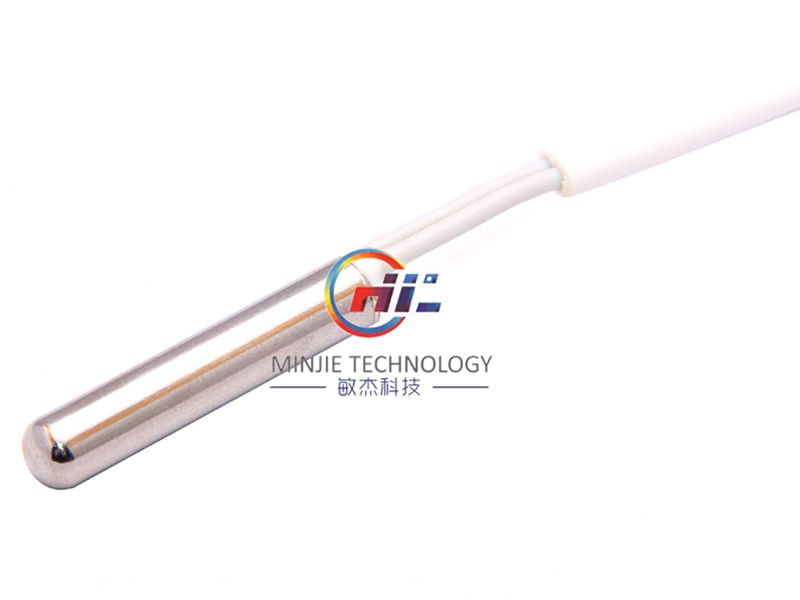

MJZT-D Low Temperature Sensor
MJZT low temperature sensor is specially designed for temperature sensing duties of air-conditioner and fridge, responsible for room temperature sensing and device interior temperature sensing. With a working temperature range of -40℃~120℃ and a wide resistance range of 0.1~500KΩ, the sensor could also be applied in water heater, water dispenser, range hood, electric kettle, goldfish bowl, food processor, etc.
Features
- Tightly sealed for good insulation resistivity and waterproof performance;
- Insulation resistance: ≥100MΩ;
- Wide resistance range: 0.1~500KΩ;
- Highly accurate resistance and B value grant high measuring accuracy;
- Compact size, fast response and good uniformity;
- Good stability after long-term operation, good reliability assured;
- Working temperature: -40℃~120℃;
- Dissipation constant: ≥ 2.0mW/℃ in still air;
- Time constant: ≤10s (25℃~50℃, in water).
Applications
- Working temperature: -40℃~120℃
- Suitable wire color: black, white, red, blue, etc.
- Major applications: air-conditioner and fridge.
- Other applications: water heater, water dispenser, range hood, electric kettle, goldfish bowl, food processor, etc.
